IN-LINE EXHAUST FAN

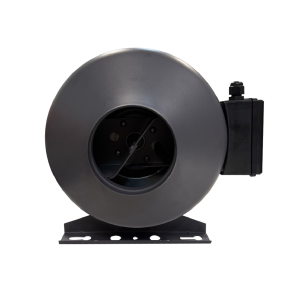

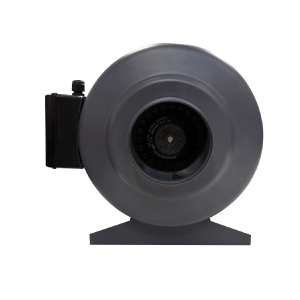

In-Line Exhaust Fan
- Advanced, cost-effective air movement solution
- High-efficiency impeller with external rotor motor
- Compact, lightweight, and low-noise design
- Easy and flexible installation
- Ideal for ventilation in gardens, hotels, halls, supermarkets, and public areas like airports and stations
Parameters
| Model | Voltage (V~/Hz) |
Input Power (W) |
Speed (rpm) |
Airflow (CFM) |
Static (pa) |
Noise (dB) |
|---|---|---|---|---|---|---|
| ID-04-S-01 | 220-240V~ /50Hz |
70 | 2350 | 310 | 315 | 52 |
| ID-05-S-01 | 75 | 2450 | 385 | 350 | 50 | |
| ID-06-S-01 | 100 | 2400 | 720 | 443 | 53 | |
| ID-08-S-01 | 158 | 2450 | 1120 | 580 | 60 | |
| ID-10-S-01 | 180 | 2450 | 1320 | 570 | 62 | |
| ID-12-S-01 | 190 | 2450 | 1900 | 700 | 65 |
Dimensions
| Model | A1 | A2 | B | ΦC | ΦD |
|---|---|---|---|---|---|
| ID-04-S-01 | 28 | 28 | 148 | 97 | 240 |
| ID-05-S-01 | 28 | 28 | 148 | 120 | 240 |
| ID-06-S-01 | 38 | 38 | 218 | 145 | 330 |
| ID-08-S-01 | 38 | 28 | 188 | 195 | 330 |
| ID-10-S-01 | 38 | 28 | 188 | 245 | 330 |
| ID-12-S-01 | 38 | 28 | 188 | 310 | 400 |
Product Structures
Main Components:
Chassis, impeller, external rotor motor, and junction box.
Chassis:
- High-quality cold-rolled steel construction
- Plastic sealant coating for corrosion resistance
- CAD-optimized flow channel for efficiency
- Easy-to-install inlet/outlet flange (Φ4", Φ5", Φ6", Φ8", Φ10", Φ12")
Impeller:
- Sizes: Φ190mm, Φ220mm, Φ250mm
- Curved-end blades for high airflow and efficiency
- Designed to minimize noise with fan casing synergy
External Rotor Motor:
- Single-phase asynchronous motor
- Direct die-cast connection to impeller
- Quiet operation, improved airflow, extended lifespan
Junction Box:
- External location for easy access and maintenance
